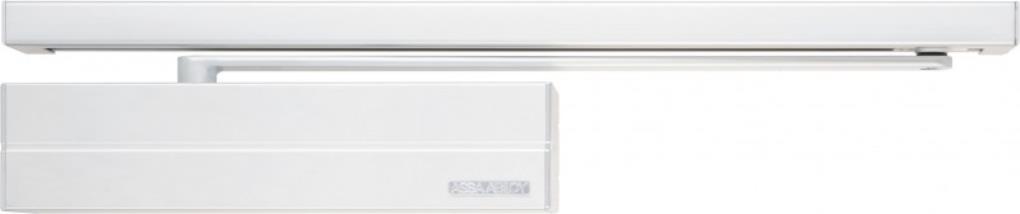

Assa DC500A overhead cam action door closer silver


each (plus VAT)

Categories: ,


Model : DC500A SE


  • Door closer with CAM-Motion Technology and height-adjustable guide rail G195 or standard guide rail G193
  • Fulfils barrier-free building requirements (DDA/CEN TR 15894)
  • Certified compliance with EN 1154, size 1-4
  • Suitable for fire and smoke protection doors
  • For single action doors up to 1100 mm wide
  • Can be used in four installation types: hinge and non-hinge sides in standard and frame installation
  • Can be used with integrated concealed mounting plate, suitable for fire and smoke protection doors
  • Can be used for left and right-handed doors
  • Axis continuously height adjustable up to 14 mm
  • Closing speed, latching speed and backcheck adjustable via front facing regulating valves
  • Thermodynamic valves for consistent performance
  • Variable adjustable closing force
  • Opening angle up to 170ยบ
  • Effective backcheck and latching speed range adjustable
  • Large range of applications
